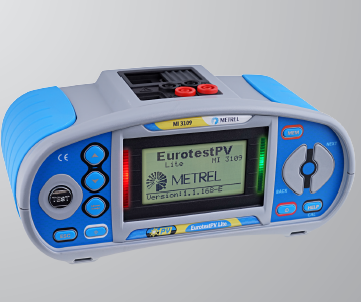

GÜNEŞ PANELİ TEST CİHAZI METREL MI 3109 Güneş Paneli Test Cihazı

Kayıt Aralığı

Mikro SD Kart Hafızası

8GB

16GB

32GB

Maksimum Kayıt Süresi

1sn

2 Gün 17 Saat

5 Gün 7 Saat

10 Gün 22 Saat

3sn

8 Gün 3 Saat

15 Gün 23 Saat

32 Gün 18 Saat

5sn

13 Gün 14 Saat

26 Gün 15 Saat

54 Gün 15 Saat

10sn

27 Gün 4 Saat

53 Gün 6 Saat

109 Gün 6 Saat

1 dak.

163 Gün 3 Saat

319 Gün 14 Saat

>1 Yıl

2 dak.

326 Gün 7 Saat

>1 Yıl

>1 Yıl

5 dak.

>1 Yıl

>1 Yıl

>1 Yıl

10 dak.

>1 Yıl

>1 Yıl

>1 Yıl

15 dak.

>1 Yıl

>1 Yıl

>1 Yıl

30 dak.

>1 Yıl

>1 Yıl

>1 Yıl

60 dak.

>1 Yıl

>1 Yıl

>1 Yıl

Voltage inputs

AC+DC

Number of inputs

5

Nominal voltage range (L – N)

Phase (L-N): 50 - 1000 VRMS

Line (L-L): 50 - 1730 VRMS

Measuring range

10% - 150% of nominal voltage

Accuracy

IEC 61000-4-30 Class A, ±0.1% of nominal voltage

Sampling rate

7 k Samples per sec @ 50/60 Hz, sync with mains freq.

Mains frequency range

42,5 - 69,0 Hz ±10 mHz

Current inputs

AC+DC

Number of inputs

4

Measuring range (with A1227 flex clamps)

3 - 6000 ARMS ±1.5% of m.v

Measuring range (with A1281 iron clamps)

50 m - 1200 ARMS ±0.5% of m.v

Functions

Measuring range

Accuracy

Power (P, Q, S, cos φ, PF…)

Depends on voltage and selected clamps

IEC 61557-12 Class 1

Energy

Depends on voltage and selected clamps

s Active: IEC 62053-21 Class 1

Reactive: IEC 62053-23 Class 2

Harmonics (DC - 50th)

0 - 20% of nom. voltage

IEC 61000-4-7 Class 1

Interharmonics (1 - 50th)

0 - 20% of nom. voltage

IEC 61000-4-7 Class 1

Flicker

0.2 - 10

IEC 61000-4-15 Class F3

Mains signaling

0 - 15% of nom. voltage

IEC 61000-4-30 Class A

Unbalance

Voltage: 0 - 5% Current: 0 - 17%

Temperature

-10 to 85 °C

±0.5 °C

Dips, Swell

10 - 150% of nom. voltage

±0.2 % of nominal voltage

±1 cycle

Interrupts

0 - 10% of nom. voltage

±1 cycle

Recorders

Memory

8GB microSD, up to 32GB supported

General recorder

Integration period

1s … 2h

Recorded signals

> 1000 (voltages, currents, harmonics, power…)

Minimal, maximal and average value per interval

- Voltage events

- Custom alarms

Duration

> 1 year (depends on size of SD card)

Waveform recorder

Duration

Up to 20 seconds of voltage and current waveform

Trigger

Manual, Voltage Events, Custom Alarms,

Voltage or current level (inrush), Time interval

Transient recorder

Sampling rate

> 49ksamples/sec

Duration

Up to 50 cycles of voltage and current waveform

Trigger

Manual, voltage envelope or level

General

Display

4.3 inch color TFT (480 x 272)

Communication

USB, Ethernet

Time synchronization

GPS receiver (A 1355)

Power supply

110 - 240 Vac or 6 x NiMh rechargable batteries, size AA

Overvoltage category

CAT IV / 600 V or CAT III / 1000 V

Weight

1 kg

Dimensions

230 x 140 x 80 mm
